TRUSTEC MOTOR TWOJA ZAUFANA FABRYKA
Obroty:

|
| Place of Origin: | Changzhou, China |
| Nazwa handlowa: | trusTec |
| Orzecznictwo: | CE、UL529388 |
| Model Number: | YDK-46-4A60-KPM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Cena: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

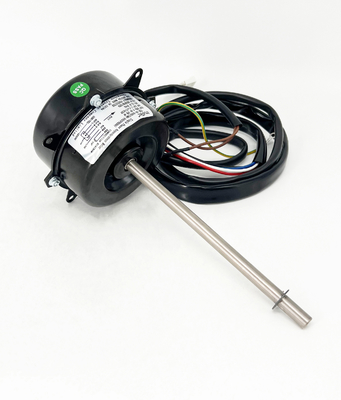

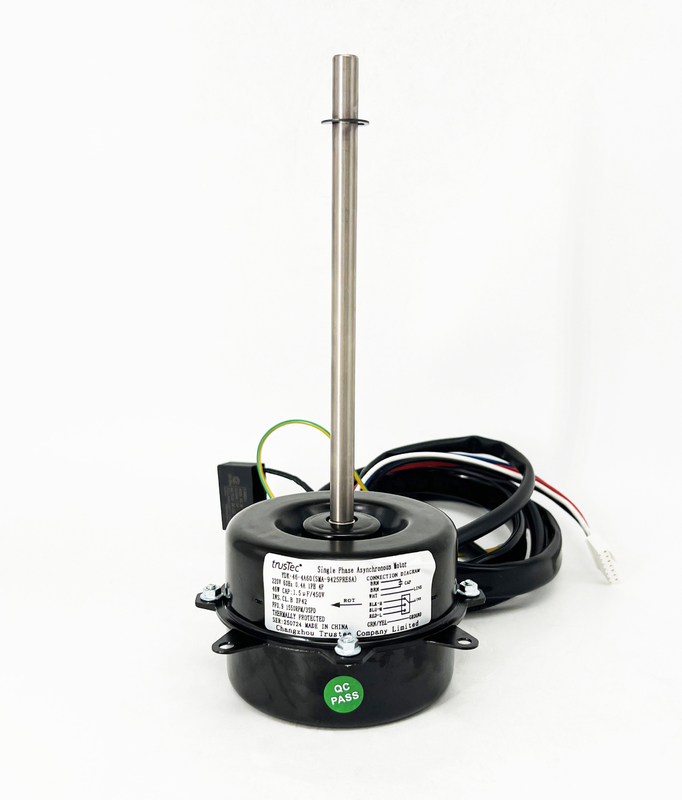

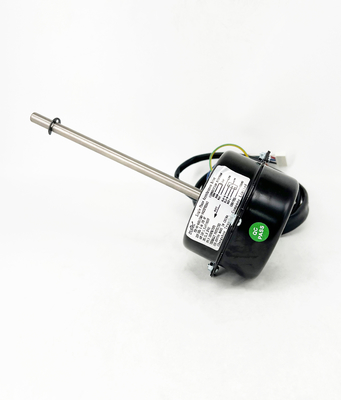

| Product: | Outdoor Fan Motor | Supply Voltage: | 220V |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Frequency: | 60Hz |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Current: | 0.4A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output HP: | 46W |
| Phase: | Single Phase | Speed: | 950RPM/5SPD |
| Shaft Flat: | One Flat | Capacitor: | 5.0μF/370V |
| Mounting Orientation: | All Angle | Pole: | 4P |
| Insulation Class: | Class B | Shaft Length: | 253mm/9.96" |
| Bearings: | Ball Bearing | PF: | 0.9 |
| Rotation: | CW | Flat Length: | 21mm/0.83mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 800mm/31.5" |
